先進的開關模式設計，以達到更小的噪音和畸變，更高的功率密度。單通道輸出，直流耦合電壓控制模式，最適合電抗性負載。8101能提供最大16A電流和235Vrms連續輸出，帶寬范圍在直流至5 KHz。

Single-Channel, DC-Coupled Power Supply Amplifier for Pulse or Continuous Duty Operation

Features

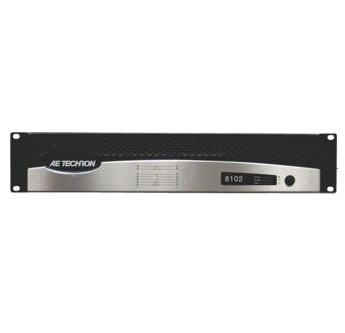

The 8102 power supply amplifier features an advanced switch-mode design that results in low noise and distortion, and high power density. It is configured as a single-channel, DC-coupled, controlled voltage amplifier ideal for reactive loads. The 8102 can provide up to 16 Arms or 235 Vrms continuous output. It offers a continuous, full-power frequency bandwidth of DC to 5 kHz.
The 8102 also features an integrated switching power supply that reduces weight and allows the unit to fit a standard 2U rack space. The 8102 operates from single-phase, 120-volt AC mains (230 VAC version available).
